Blueprint API

This page lists all the blueprint functions available in the plugin

Updated 2021-01-30 05:10:17.367206

Tools

Asset Tools

Add Disable Edits Box


Add a disable edits box to the world

Add Disable Edits Box Async


Add a disable edits box to the world

Runs asynchronously

Create Data Asset from World Section


Create Data Asset from World Section

Import Asset


Add a voxel asset to the world: can be a data asset (eg imported from a mesh), or a graph asset

Will not provide the Previous Generator, so won't work with graphs that use it!

Unlike ImportAssetAsReference, this one copies the asset data into the world. Can be expensive for large assets. Use this if your asset is relatively small

Import Asset as Reference


Add a voxel asset to the world: can be a data asset (eg imported from a mesh), or a graph asset

Cheap, unless there are edited voxels in the zone the asset is imported in

Will provide the PreviousGenerator to voxel graphs

Import Asset as Reference Async


Add a voxel asset to the world: can be a data asset (eg imported from a mesh), or a graph asset

Cheap, unless there are edited voxels in the zone the asset is imported in

Will provide the PreviousGenerator to voxel graphs

Runs asynchronously

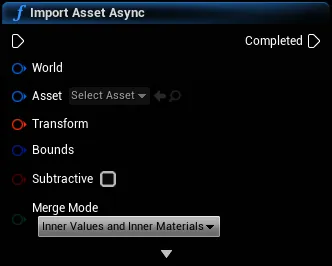

Import Asset Async


Add a voxel asset to the world: can be a data asset (eg imported from a mesh), or a graph asset

Will not provide the Previous Generator, so won't work with graphs that use it!

Unlike ImportAssetAsReference, this one copies the asset data into the world. Can be expensive for large assets. Use this if your asset is relatively small

Import Data Asset Fast


Specialization of ImportAsset for data assets with no scale nor rotation

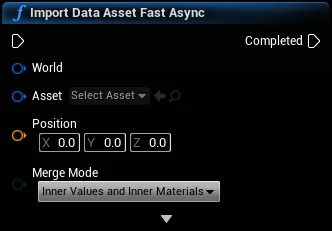

Import Data Asset Fast Async


Specialization of ImportAsset for data assets with no scale nor rotation

Import Modifier Asset


Add a voxel modifier asset to the world. Should be a graph asset.

Unlike ImportAsset, this WILL provide the Previous Generator to the graph, so you can access the existing voxel value

Unlike ImportAssetAsReference, this one copies the asset data into the world. Can be expensive for large assets. Use this if your asset is relatively small

Import Modifier Asset Async


Add a voxel asset to the world: can be a data asset (eg imported from a mesh), or a graph asset

Will not provide the Previous Generator, so won't work with graphs that use it!

Unlike ImportAssetAsReference, this one copies the asset data into the world. Can be expensive for large assets. Use this if your asset is relatively small

Invert Data Asset


Invert Data Asset

Set Data Asset Material


Set Data Asset Material

Box Tools

Add Box


Add a box shape

See: AddBox, AddBoxAsync and FVoxelBoxToolsImpl::AddBox

Add Box Async


Add a box shape

Runs asynchronously in a background thread

See: AddBox, AddBoxAsync and FVoxelBoxToolsImpl::AddBox

Remove Box


Remove a box shape

See: RemoveBox, RemoveBoxAsync and FVoxelBoxToolsImpl::RemoveBox

Remove Box Async


Remove a box shape

Runs asynchronously in a background thread

See: RemoveBox, RemoveBoxAsync and FVoxelBoxToolsImpl::RemoveBox

Set Material Box


Paint a box shape

See: SetMaterialBox, SetMaterialBoxAsync and FVoxelBoxToolsImpl::SetMaterialBox

Set Material Box Async


Paint a box shape

Runs asynchronously in a background thread

See: SetMaterialBox, SetMaterialBoxAsync and FVoxelBoxToolsImpl::SetMaterialBox

Set Value Box


Set the density in a box

See: SetValueBox, SetValueBoxAsync and FVoxelBoxToolsImpl::SetValueBox

Set Value Box Async


Set the density in a box

Runs asynchronously in a background thread

See: SetValueBox, SetValueBoxAsync and FVoxelBoxToolsImpl::SetValueBox

Cubic

Get Cubic Voxel Position from Hit


Use bSelectVoxelOutside to choose which voxel to select, between the two sides of the face hit

Get Cubic Voxel Value


Get Cubic Voxel Value

Set Cubic Voxel Value


Set Cubic Voxel Value

Data

Clear Unused Materials


Remove materials that do not affect the surface. Same visual result but will lead to better compression.

Digging will look different.

Clear Unused Materials Async


Remove materials that do not affect the surface. Same visual result but will lead to better compression.

Digging will look different.

Find Closest Non Empty Voxel


Finds the closest voxel to Position that is not empty

This is useful to do edits, or to query the material at a position

Find Closest Non Empty Voxel Async


Finds the closest voxel to Position that is not empty

This is useful to do edits, or to query the material at a position

Get Compressed Save


Get a save of the world and compress it

Get Compressed Save Async


Get a save of the world and compress it

Get Interpolated Density


Get the density at Position

Get Material


Get the material at Position

Get Material Async


Get the material at Position

Get Save


Get a save of the world

Get Save Async


Get a save of the world

Get Density


Get the density at Position

Get Density Async


Get the density at Position

Get Voxels Value and Material


Read a large number of voxels at a time

Get Voxels Value and Material Async


Read a large number of voxels at a time, asynchronously

Load from Compressed Save


Load from a compressed save

Load from Save


Load from a save

Round Voxels


Round voxels that don't have an impact on the surface. Same visual result but will lead to better compression

Round Voxels Async


Round voxels that don't have an impact on the surface. Same visual result but will lead to better compression

Set Material


Set the material at Position

Set Material Async


Set the material at Position

Set Density


Set the density at Position

Set Density Async


Set the density at Position

Level Tools

Level


Stamps a cylinder, to quickly level parts of the world

If additive, will stamp a smooth cylinder above Position. Else will remove one below Position

See: Level, LevelAsync and FVoxelLevelToolsImpl::Level

Level Async


Stamps a cylinder, to quickly level parts of the world

If additive, will stamp a smooth cylinder above Position. Else will remove one below Position

Runs asynchronously in a background thread

See: Level, LevelAsync and FVoxelLevelToolsImpl::Level

Mesh Importer

Convert Mesh to Voxels


Convert Mesh to Voxels

Convert Mesh to Voxels No Materials


Convert Mesh to Voxels No Materials

Create Mesh Data from Static Mesh


Create Mesh Data from Static Mesh

Create Texture from Material


Create Texture from Material

Projection Tools

Create Surface Voxels from Hits


For some surface tools you'll need to use CreateSurfaceVoxelsFromHitsWithExactValues instead

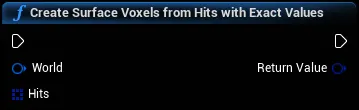

Create Surface Voxels from Hits with Exact Values


Will store the voxel values

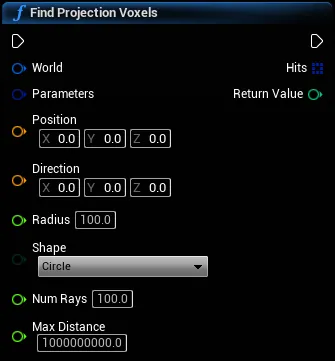

Find Projection Voxels


Find voxels using linetraces

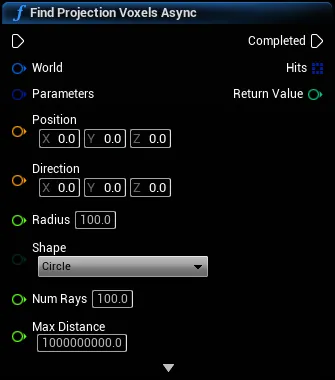

Find Projection Voxels Async


Find voxels using linetraces, asynchronously

Get Hits Average Normal


Get Hits Average Normal

Get Hits Average Position


Get Hits Average Position

Get Hits Positions


Get Hits Positions

Sphere Tools

Add Sphere


Add a sphere

See: AddSphere, AddSphereAsync and FVoxelSphereToolsImpl::AddSphere

Add Sphere Async


Add a sphere

Runs asynchronously in a background thread

See: AddSphere, AddSphereAsync and FVoxelSphereToolsImpl::AddSphere

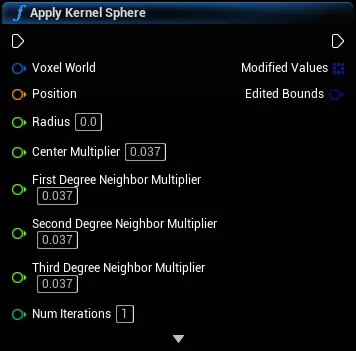

Apply Kernel Sphere


Apply a 3x3x3 kernel

See: ApplyKernelSphere, ApplyKernelSphereAsync and FVoxelSphereToolsImpl::ApplyKernelSphere

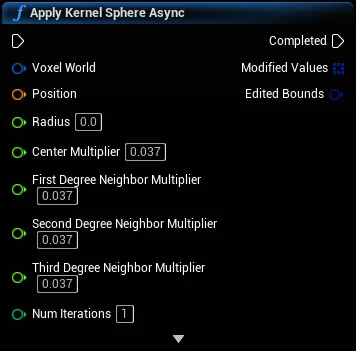

Apply Kernel Sphere Async


Apply a 3x3x3 kernel

Runs asynchronously in a background thread

See: ApplyKernelSphere, ApplyKernelSphereAsync and FVoxelSphereToolsImpl::ApplyKernelSphere

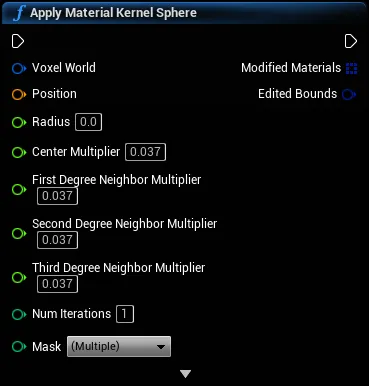

Apply Material Kernel Sphere


Apply a 3x3x3 kernel to the materials

See: ApplyMaterialKernelSphere, ApplyMaterialKernelSphereAsync and FVoxelSphereToolsImpl::ApplyMaterialKernelSphere

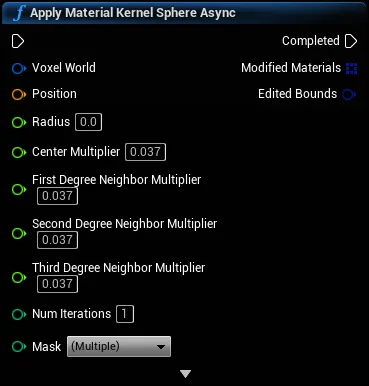

Apply Material Kernel Sphere Async


Apply a 3x3x3 kernel to the materials

Runs asynchronously in a background thread

See: ApplyMaterialKernelSphere, ApplyMaterialKernelSphereAsync and FVoxelSphereToolsImpl::ApplyMaterialKernelSphere

Remove Sphere


Remove a sphere

See: RemoveSphere, RemoveSphereAsync and FVoxelSphereToolsImpl::RemoveSphere

Remove Sphere Async


Remove a sphere

Runs asynchronously in a background thread

See: RemoveSphere, RemoveSphereAsync and FVoxelSphereToolsImpl::RemoveSphere

Remove Sphere with Durability


Removes all the voxels in a sphere, if their single index is contained in Internal (Min <= Index <= Max)

Mainly intended for the cubic mode

See: RemoveSphereWithDurability, RemoveSphereWithDurabilityAsync and FVoxelSphereToolsImpl::RemoveSphereWithDurability

Remove Sphere with Durability Async


Removes all the voxels in a sphere, if their single index is contained in Internal (Min <= Index <= Max)

Mainly intended for the cubic mode

Runs asynchronously in a background thread

See: RemoveSphereWithDurability, RemoveSphereWithDurabilityAsync and FVoxelSphereToolsImpl::RemoveSphereWithDurability

Revert Sphere


Reverts the voxels inside a sphere shape to a previous frame in the undo history.

Can be used to "paint" the undo history

NOTE: Does not work with bMultiThreaded and does not fill ModifiedValues!

See: RevertSphere, RevertSphereAsync and FVoxelSphereToolsImpl::RevertSphere

Revert Sphere Async


Reverts the voxels inside a sphere shape to a previous frame in the undo history.

Can be used to "paint" the undo history

NOTE: Does not work with bMultiThreaded and does not fill ModifiedValues!

Runs asynchronously in a background thread

See: RevertSphere, RevertSphereAsync and FVoxelSphereToolsImpl::RevertSphere

Revert Sphere to Generator


Reverts the voxels inside a sphere shape to their generator value

NOTE: Does not work with bMultiThreaded and does not fill ModifiedValues!

See: RevertSphereToGenerator, RevertSphereToGeneratorAsync and FVoxelSphereToolsImpl::RevertSphereToGenerator

Revert Sphere to Generator Async


Reverts the voxels inside a sphere shape to their generator value

NOTE: Does not work with bMultiThreaded and does not fill ModifiedValues!

Runs asynchronously in a background thread

See: RevertSphereToGenerator, RevertSphereToGeneratorAsync and FVoxelSphereToolsImpl::RevertSphereToGenerator

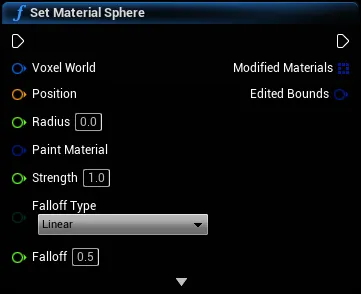

Set Material Sphere


Paint material in a sphere shape

See: SetMaterialSphere, SetMaterialSphereAsync and FVoxelSphereToolsImpl::SetMaterialSphere

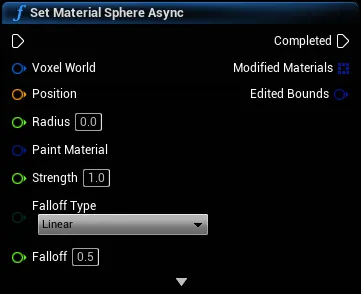

Set Material Sphere Async


Paint material in a sphere shape

Runs asynchronously in a background thread

See: SetMaterialSphere, SetMaterialSphereAsync and FVoxelSphereToolsImpl::SetMaterialSphere

Set Value Sphere


Set the density in a sphere

See: SetValueSphere, SetValueSphereAsync and FVoxelSphereToolsImpl::SetValueSphere

Set Value Sphere Async


Set the density in a sphere

Runs asynchronously in a background thread

See: SetValueSphere, SetValueSphereAsync and FVoxelSphereToolsImpl::SetValueSphere

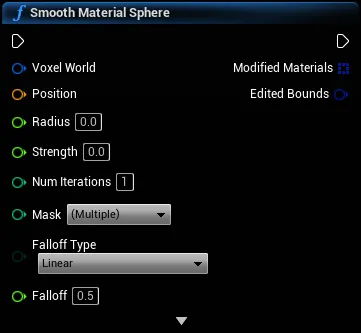

Smooth Material Sphere


Smooth materials in a sphere

See: SmoothMaterialSphere, SmoothMaterialSphereAsync and FVoxelSphereToolsImpl::SmoothMaterialSphere

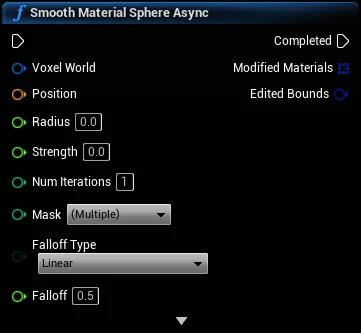

Smooth Material Sphere Async


Smooth materials in a sphere

Runs asynchronously in a background thread

See: SmoothMaterialSphere, SmoothMaterialSphereAsync and FVoxelSphereToolsImpl::SmoothMaterialSphere

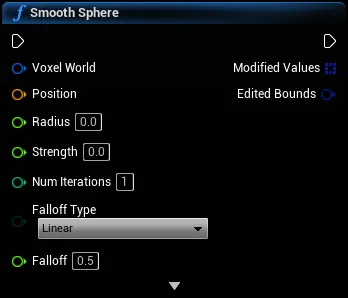

Smooth Sphere


Smooth a sphere

See: SmoothSphere, SmoothSphereAsync and FVoxelSphereToolsImpl::SmoothSphere

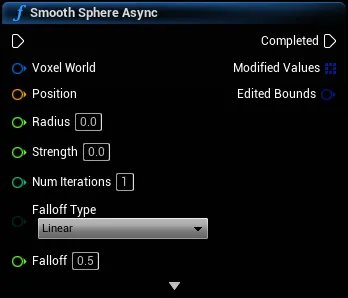

Smooth Sphere Async


Smooth a sphere

Runs asynchronously in a background thread

See: SmoothSphere, SmoothSphereAsync and FVoxelSphereToolsImpl::SmoothSphere

Trim Sphere


Trim tool: used to quickly flatten large portions of the world

Best results are obtained when Position and Normal are averages: use FindProjectionVoxels to do some linetraces, and then GetAveragePosition/Normal on the result

This ensures the tool usage is relatively smooth.

Works by stamping a shape into the world (if bAdditive = false, the stamp is destructive: voxels are removed instead)

The shape is the smooth union of a sphere SDF and a plane SDF. The smoothness of the union is controlled by the Falloff parameter.

See: TrimSphere, TrimSphereAsync and FVoxelSphereToolsImpl::TrimSphere

Trim Sphere Async


Trim tool: used to quickly flatten large portions of the world

Best results are obtained when Position and Normal are averages: use FindProjectionVoxels to do some linetraces, and then GetAveragePosition/Normal on the result

This ensures the tool usage is relatively smooth.

Works by stamping a shape into the world (if bAdditive = false, the stamp is destructive: voxels are removed instead)

The shape is the smooth union of a sphere SDF and a plane SDF. The smoothness of the union is controlled by the Falloff parameter.

Runs asynchronously in a background thread

See: TrimSphere, TrimSphereAsync and FVoxelSphereToolsImpl::TrimSphere

Surface Edit Tools

Edit Voxel Materials


Apply paint material to the processed voxels, using the processed strengths

See: ApplyStack, AddToStack

See: EditVoxelMaterials, EditVoxelMaterialsAsync and FVoxelSurfaceEditToolsImpl::EditVoxelMaterials

Edit Voxel Materials Async


Apply paint material to the processed voxels, using the processed strengths

Runs asynchronously in a background thread

See: ApplyStack, AddToStack

See: EditVoxelMaterials, EditVoxelMaterialsAsync and FVoxelSurfaceEditToolsImpl::EditVoxelMaterials

Edit Voxel Values


Apply processed voxels strengths to the voxel values

See: ApplyStack, AddToStack

See: EditVoxelValues, EditVoxelValuesAsync and FVoxelSurfaceEditToolsImpl::EditVoxelValues

Edit Voxel Values Async


Apply processed voxels strengths to the voxel values

Runs asynchronously in a background thread

See: ApplyStack, AddToStack

See: EditVoxelValues, EditVoxelValuesAsync and FVoxelSurfaceEditToolsImpl::EditVoxelValues

Propagate Voxel Materials


Propagate the materials of the voxels, so that the new surface is painted correctly

Must be called BEFORE EditVoxelValues!

See: ApplyStack, AddToStack

See: PropagateVoxelMaterials, PropagateVoxelMaterialsAsync and FVoxelSurfaceEditToolsImpl::PropagateVoxelMaterials

Propagate Voxel Materials Async


Propagate the materials of the voxels, so that the new surface is painted correctly

Must be called BEFORE EditVoxelValues!

Runs asynchronously in a background thread

See: ApplyStack, AddToStack

See: PropagateVoxelMaterials, PropagateVoxelMaterialsAsync and FVoxelSurfaceEditToolsImpl::PropagateVoxelMaterials

Surface Tools

Add to Stack


Add to Stack

Apply Constant Strength


Apply a constant strength to the surface voxels

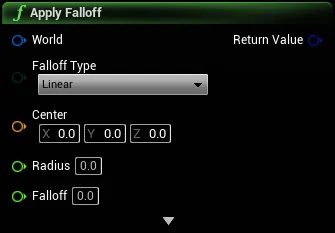

Apply Falloff


Apply a falloff to surface voxels, based on their distance from a point.

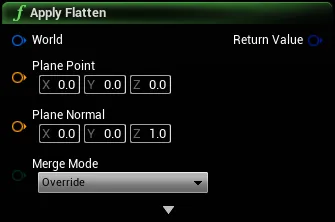

Apply Flatten


Make surface voxels go towards a plane

Important: if bExactDistanceField = true, this node should be called last! Modifying strengths after it will result

in glitchy behavior

Apply Stack


Apply Stack

Apply Stack Async


Apply Stack Async

Apply Strength Curve


Apply a strength curve to surface voxels, based on their distance from a point:

Strength = Curve.SampleAt(Distance(Voxel.Position, Center) / Radius)

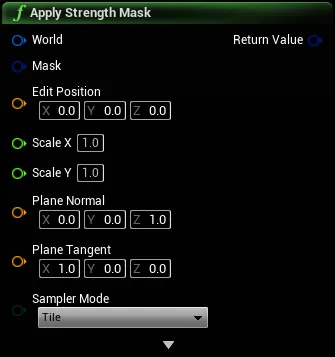

Apply Strength Mask


Apply a strength mask to surface voxels, based on their position projected onto a plane

Apply Terrace


Apply terracing

Debug Surface Voxels


Debug Surface Voxels

Find Surface Voxels


Find voxels that are on the surface. Faster than FindSurfaceVoxelsFromDistanceField, but the values won't be exact distances

Find Surface Voxels 2D


Find voxels that are on the surface. Only keep the one with the surface right above them that are facing up. If 2 surface voxels have the same X Y, will only keep the one with the higher Z

Find Surface Voxels 2DAsync


Find voxels that are on the surface. Only keep the one with the surface right above them that are facing up. If 2 surface voxels have the same X Y, will only keep the one with the higher Z

Find Surface Voxels Async


Find voxels that are on the surface. Faster than FindSurfaceVoxelsFromDistanceField, but the values won't be exact distances

Find Surface Voxels from Distance Field


Find voxels that are on the surface using an exact computation of the distance field using the GPU

Get Bounds


Get Bounds

Get Strength Mask Scale


Compute the scale for ApplyStrengthMask from a wanted size

Tick Data

Deproject


Deproject

Get Axis


Get Axis

Get Ray Direction


Get Ray Direction

Get Ray Origin


Get Ray Origin

Is Alternative Mode


Is Alternative Mode

Is Key Down


Is Key Down

Base

Get Modified Voxel Materials Bounds


Get Modified Voxel Materials Bounds

Get Modified Voxel Values Bounds


Get Modified Voxel Values Bounds

Nodes

Apply


Apply

Disable Tool


Call this to delete any tool preview actors

Enable Tool


Call this to do some initial setup

Will be called in the first tool tick if you don't

Get Tool Name


Get Tool Name

Get Voxel World


Get Voxel World

AdvancedTick


K2 Advanced Tick

SimpleTick


Tick the tool

Make Tool Axes


Make Tool Axes

Make Tool Keys


Make Tool Keys

Make Voxel Tool


Make Voxel Tool

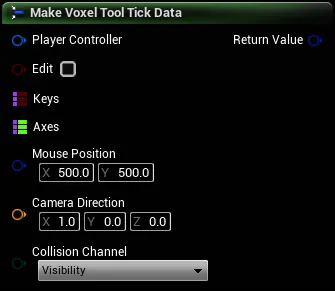

Make Voxel Tool Tick Data


Make Voxel Tool Tick Data

Create Default Tools


If bLoadBlueprints is true, all the blueprints inheriting from VoxelTool will be force loaded

If false, tools whose blueprints are not loaded won't show up

Get Active Tool


Get Active Tool

Get Tools


Get Tools

Get Shared Config


K2 Get Shared Config

Set Active Tool


Set Active Tool

Set Active Tool by Class


Set Active Tool by Class

Set Active Tool by Name


Set Active Tool by Name

Utilities

Add Neighbors to Set


Add Neighbors to Set

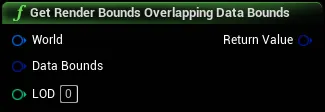

Get Render Bounds Overlapping Data Bounds


eg if you want to cache all the data that's going to be used by render chunks when updating the world

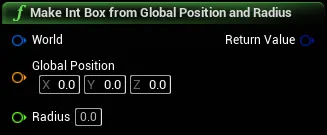

Make Int Box from Global Position and Radius


Make IntBox from global position and radius

Math

Int Vector

IntVector + IntVector


Add Int Vector Int Vector

IntVector / int


Divide Int Vector Int

Get Max


Get Max Intvector

Get Min


Get Min Intvector

int * IntVector


Multiply Int Int Vector

IntVector * int


Multiply Int Vector Int

IntVector * IntVector


Multiply Int Vector Int Vector

IntVector - IntVector


Substract Int Vector Int Vector

Voxel Int Box

Add Box


Add Box

Add Point


Add Point

Apply Transform


Apply Transform

Break Int Box


Breaks an Int Box

Break Int Box with Validity


Break Int Box with Validity

Center


Will move the box so that GetCenter = 0,0,0. Will extend it if its size is odd

Contains


Contains

Equal (VoxelIntBox)


Equal Equal Int Box Int Box

Extend


Extend

Extend Int Vector


Extend Int Vector

Get Center


Get Center

Get Corners


Get Corners

Get Size


Get Size

Infinite Box


Infinite Box

Intersect


Intersect

Is Int Vector Inside Box


Is Int Vector Inside Box

Is Valid


Is Valid

Is Vector Inside Box


Is Vector Inside Box

Make Box from Local Position and Radius


From -Radius(included) to Radius(excluded)

Make Box from Position and Radius


Make Box from Position and Radius

Make Int Box


Makes an Int Box. Min must be <= to Max

Make Int Box from Points


Make Int Box from Points

Make Int Box with Validity


Make Int Box with Validity

NotEqual (VoxelIntBox)


Not Equal Int Box Int Box

Overlap


Overlap

Remove Translation


Remove Translation

Scale


Scale

Translate Box


Translate Box

Random

Get Halton 1D


Get Halton 1D

Get Halton 2D


Get Halton 2D

Get Halton 3D


Get Halton 3D

Get Unit Vector from Random


Generates a random position on the unit sphere, given some random input between 0 and 1

Make Halton Stream


Make Halton Stream

Reset Halton Stream


Reset Halton Stream

Render

Apply LOD Settings


Call this after changing the voxel world LODs setting while created

Apply New Materials


Call this after changing a voxel world VoxelMaterial/MaterialCollection to apply it

Get Task Count


Number of processing tasks not finished

Is Voxel World Foliage Loading


Returns true if there are still foliage tasks queued

Is Voxel World Mesh Loading


Returns true if there are still mesh tasks queued

Recreate


Call this to recreate the voxel world entirely, optionally keeping data intact by saving it

Recreate Render


Call this to recreate the voxel world rendering entirely, keeping data intact

Recreate Spawners


Call this to recreate the voxel world spawners

Update All


Update all the chunks

Update Bounds


Update the chunks overlapping Bounds.

Update Position


Update the chunks overlapping Position

Materials

Apply Paint Material


Apply a Paint Material to a Voxel Material

Create RGB Paint Material


Create from color

Create Five Way Blend Paint Material


Create paint material for 5 way blend

Create Multi Index Paint Material


Create for multi index

Create Multi Index Raw Paint Material


Create for multi index, setting the data directly

Create Multi Index Wetness Paint Material


Create for multi index wetness

Create Single Index Paint Material


Create for single index

Create UV Paint Material


Create UV paint

Get Color


Get Color

Get Multi Index


If SortByStrength is true, Index 0 will have the highest strength, Index 1 the second highest etc

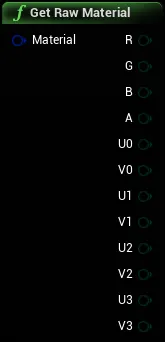

Get Raw Material


Get Raw Material

Get Single Index


Get Single Index

Get UV


Get UV

Make Color Material


Make Color Material

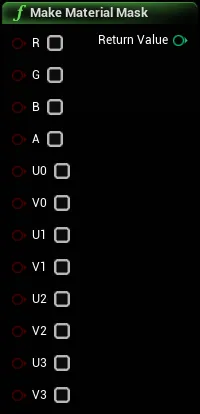

Make Material Mask


Make Material Mask

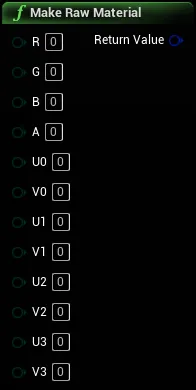

Make Raw Material


Make Raw Material

Make Single Index Material


Make Single Index Material

Collisions

Are Collisions Enabled


Returns whether voxel collisions are enabled at Position

Are Voxel Collisions Frozen


Are Voxel Collisions Frozen

Set Voxel Collisions Frozen


Set Voxel Collisions Frozen

Proc Gen

Bind Voxel Chunk Events


Bind Voxel Chunk Events

Bind Voxel Generation Event


Bind Voxel Generation Event

Data

Cache

Cache Materials


Cache the materials in the bounds

Cache Materials Async


Cache the materials in the bounds

Cache Values


Cache the values in the bounds

Cache Values Async


Cache the values in the bounds

Clear Cached Materials


Clear Cached Materials

Clear Cached Materials Async


Clear Cached Materials Async

Clear Cached Values


Clear Cached Values

Clear Cached Values Async


Clear Cached Values Async

Save

Compress Voxel Save


Compress Voxel Save

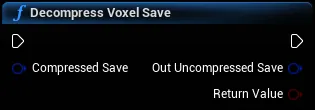

Decompress Voxel Save


Decompress Voxel Save

Nodes

Clear All Data


Clear all the data in the world, including items/assets

Clear Dirty Data


Clear all the edited data in the world, excluding items/assets

Clear Material Data


Clear all the material data in the world

Clear Value Data


Clear all the value data in the world

Get Bounds


Bounds of this world

Get Float Output


Get a custom float output value

Get Int Output


Get a custom int32 output value

Get Normal


Get the normal at Position using the density gradient. May differ from the mesh normal

Has Material Data


Has Material Data

Has Value Data


Has Value Data

Scale Data


Scale the voxel world data. Will recreate the voxel world!

Check for Single Materials


Check for Single Materials

Check for Single Materials Async


Check for Single Materials Async

Check for Single Values


Check for Single Values

Check for Single Values Async


Check for Single Values Async

Check if Same as Generator


Will undirty the chunks identical to the generator

Check if Same as Generator Async


Will undirty the chunks identical to the generator

Compress Into Heightmap


If the voxel generator is a heightmap or if an heightmap asset is provided,

will update the heightmap to the max Z surface in the voxel world

Will not edit the data: RoundToGenerator should be called after for best results

Round to Generator


Will revert the values who don't have a voxel neighbor with a different sign from the generator value

Will ignore items when computing generator values

Round to Generator Async


Will revert the values who don't have a voxel neighbor with a different sign from the generator value

Will ignore items when computing generator values

Set Box as Dirty


Set Box as Dirty

Set Box as Dirty Async


Set Box as Dirty Async

Undo Redo

Clear Frames


Clear all the frames. bEnableUndoRedo must be true

Get History Position


Get the current history position

Redo


Redo last undone frame. bEnableUndoRedo must be true, and SaveFrame must have been called after any edits

Save Frame


Save the edits since the last call to SaveFrame/Undo/Redo and clear the redo stack. bEnableUndoRedo must be true

Undo


Undo last frame. bEnableUndoRedo must be true, and SaveFrame must have been called after any edits

Texture Pool

Compact Voxel Texture Pool


Will compact the texture pool used by the greedy mesher, reducing fragmentation & memory usage

See: stat VoxelTexturePool

Voxel Texture

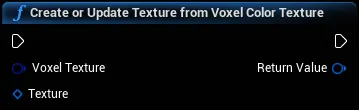

Create or Update Texture from Voxel Color Texture


Will create Texture if null, and set it

Returns Texture for convenience

Texture will have the following config:

Pixel format: PF_B8G8R8A8

Compression settings: TC_VectorDisplacementmap

SRGB: false

Filter: TF_Bilinear

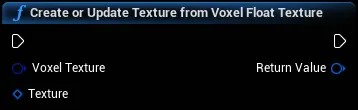

Create or Update Texture from Voxel Float Texture


Will create Texture if null, and set it

Returns Texture for convenience

Texture will have the following config:

Pixel format: PF_R32_FLOAT

Compression settings: TC_HDR

SRGB: false

Filter: TF_Bilinear

Create Texture from Voxel Color Texture


Same as CreateOrUpdateTextureFromVoxelFloatTexture with nullptr in input

Texture will have the following config:

Pixel format: PF_B8G8R8A8

Compression settings: TC_VectorDisplacementmap

SRGB: false

Filter: TF_Bilinear

Create Texture from Voxel Float Texture


Same as CreateOrUpdateTextureFromVoxelFloatTexture with nullptr in input

Texture will have the following config:

Pixel format: PF_R32_FLOAT

Compression settings: TC_HDR

SRGB: false

Filter: TF_Bilinear

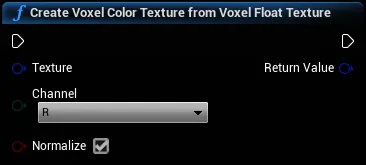

Create Voxel Color Texture from Voxel Float Texture


Creates a voxel color texture by putting a float texture into a specific channel

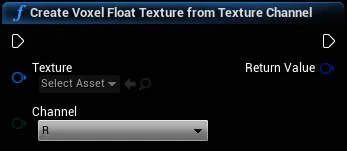

Create Voxel Float Texture from Texture Channel


Creates a voxel float texture from the color channel of a texture

Get Voxel Color Texture Size


Get Voxel Color Texture Size

Get Voxel Float Texture Size


Get Voxel Float Texture Size

Is Voxel Color Texture Valid


Is Voxel Color Texture Valid

Is Voxel Float Texture Valid


Is Voxel Float Texture Valid

Maximum


Apply the photoshop Maximum filter

Set each pixel to the max value in a radius Radius

Minimum


Apply the photoshop Minimum filter

Set each pixel to the min value in a radius Radius

Tool Rendering

Create Tool Rendering


Create Tool Rendering

Destroy Tool Rendering


Destroy Tool Rendering

Is Valid Ref


Is Valid Ref

Set Tool Rendering Bounds


Bounds: In world space

Set Tool Rendering Enabled


Set Tool Rendering Enabled

Set Tool Rendering Material


Set Tool Rendering Material

Helpers

Get All Voxel Worlds Containing Position


Iterate all voxel worlds in the scene, and return all the ones that contains Position

Get All Voxel Worlds Overlapping Actor


Iterate all voxel worlds in the scene, and return all the ones that overlaps the actor bounding box

Get All Voxel Worlds Overlapping Box


Iterate all voxel worlds in the scene, and return all the ones that overlaps Box

Get Voxel World Containing Position


Iterate all voxel worlds in the scene, and return the first one that contains Position

Get Voxel World Overlapping Actor


Iterate all voxel worlds in the scene, and return the first one that overlaps the actor bounding box

Get Voxel World Overlapping Box


Iterate all voxel worlds in the scene, and return the first one that overlaps Box

Transform Global Box to Voxel Box


Transform a box in global space to voxel space

Transform Voxel Box to Global Box


Transform a box in voxel space to global space

Memory

Get Estimated Collisions Memory Usage in MB


Returns the memory used by positions and indices buffers in this voxel world

Should give a rough estimate of how much memory is used for physics

Get Memory Usage in MB


Get the current memory usage of different parts of the plugin

Get Peak Memory Usage in MB


Get the peak memory usage of different parts of the plugin

Log Memory Stats


Log Memory Stats

Get Data Memory Usage in MB


Get Data Memory Usage in MB

Threads

Get Number Of Voxel Threads


Get Number Of Voxel Threads

Set Number Of Voxel Threads


Number of threads allocated for the voxel background processing. Setting it too high may impact performance

The threads are shared across all voxel worlds

Can be set using voxel.threading.NumThreads

Voxel Interval

Contains


Interval Contains Float

Contains


Interval Contains Int 32

Spawners

Mark Spawners Dirty


Mark spawners as dirty so that they don't get trash if they go out of scope

Regenerate Spawners


IVoxelFoliageInterface helpers

// Regenerate spawners in an aera

Coordinates

Recompute Component Positions


Update the voxel component positions

Get Neighboring Positions


Get the 8 neighbors in voxel space of GlobalPosition

World Position to Voxel


Convert position from world space to voxel space

World Bounds to Voxel


K2 Global to Local Bounds

World Position to Voxel Float


K2 Global to Local Float

Voxel Position to World


Convert position from voxel space to world space

Voxel Bounds to World


K2 Local to Global Bounds

Voxel Position to World Float


K2 Local to Global Float

Add Event

Voxel Placeable Item Manager

Event On Clear


On Clear

Event On Generate


On Generate

Voxel

Event Init Chunk


Init Chunk

Nodes

Event Initialize Collection


Initialize Collection

Event AddItemToWorld


K2 Add Item to World

Event AddItemToWorld


K2 Add Item to World

Event Tick


Called first, before DoEdit and UpdateRender

Note: Tick is a BlueprintImplementableEvent. The native Tick will always be called before.

Event UpdateRender


Might not always be called - if you want to compute things for the frame, use Tick

Cooking

Cook Voxel Data


Cook collision meshes and save the result to VoxelCookedData

Can then be loaded using LoadCookedVoxelData

Useful for servers

Cook Voxel Data with Save


Cook collision meshes and save the result to VoxelCookedData

Can then be loaded using LoadCookedVoxelData

Useful for servers

Load Cooked Voxel Data


Loads collision cooked with CookVoxelData

The voxel world must not be created: it won't ever be created, collision meshes will be loaded directly

Note: Only the voxel world collision settings will be applied

Useful for servers

Make Voxel Cooking Settings from Voxel World


Make Voxel Cooking Settings from Voxel World

Data Asset

Get Bounds


Get Bounds

Get Size


Get Size

Voxel Data Item Actor

Schedule Refresh


Schedule Refresh

Debug

Debug Voxels Inside Bounds


Debug Voxels Inside Bounds

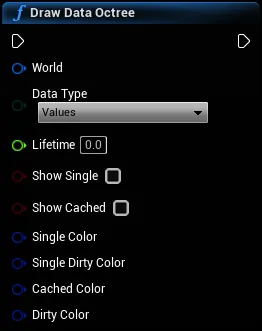

Draw Data Octree


Draw Data Octree

Draw Debug Int Box


Draw Debug Int Box

Erosion

Get Sediment Texture


Get Sediment Texture

Get Terrain Height Texture


Get Terrain Height Texture

Get Water Height Texture


Get Water Height Texture

Initialize


Initialize

Is Initialized


Is Initialized

Step


Step

Generators

Is Valid


Is Valid

Create Color Texture from Generator


Creates a color texture by reading a color output from a generator

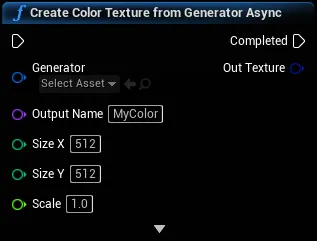

Create Color Texture from Generator Async


Creates a color texture by reading a color output from a generator, asynchronously

Create Float Texture from Generator


Creates a float texture by reading a float output from a generator

Create Float Texture from Generator Async


Creates a float texture by reading a float output from a generator, asynchronously

Is Valid


Is Valid Generator Picker

Is Valid


Is Valid Transformable Generator Picker

Make Generator Instance


Creates a new generator instance. Consider using VoxelWorld->GetGeneratorCache()->MakeGeneratorInstance instead

Make Generator Picker from Class


See: MakeGeneratorPickerFromObject

Make Generator Picker from Object


See: MakeGeneratorPickerFromClass, MakeTransformableGeneratorPickerFromObject

Make Transformable Generator Instance


Creates a new transformable generator instance. Consider using VoxelWorld->GetGeneratorCache()->MakeTransformableGeneratorInstance instead

Make Transformable Generator Picker from Class


See: MakeTransformableGeneratorPickerFromObject, MakeGeneratorPickerFromClass

Make Transformable Generator Picker from Object


See: MakeTransformableGeneratorPickerFromClass, MakeGeneratorPickerFromObject

Set Generator Parameter


Set a voxel generator parameter

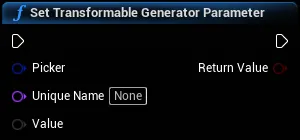

Set Transformable Generator Parameter


Set a voxel generator parameter

Is Valid


Is Valid

Heightmap Asset

Get Height


Get Height

Get Width


Get Width

Voxel Helpers

Create Proc Mesh Plane


Create Proc Mesh Plane

Invoker

Refresh All Voxel Invokers


Refresh All Voxel Invokers

Material Collection

Get Index Material


Get Index Material

Get Material Index


Get the material index from a material or a layer name

Get Materials


Used by paint material customization. Some materials might be null.

Multiplayer

Tcp

Connect to Server


Connect to a TCP server

Start Server


Start a TCP server

Nodes

Create Multiplayer Interface Instance


Create Multiplayer Interface Instance

Get Multiplayer Interface Instance


Get Multiplayer Interface Instance

Voxel Placeable Item Manager

Add Data Item


Do not call this directly: call the respective Add Data Item instead!

Draw Debug Line


Draws a line in the world & in the voxel graph preview

Draw Debug Point


Draws a point in the world & in the voxel graph preview

Get Generator Cache


Get Generator Cache

Placeable Items

Add Worms


Add Worms

Test

Read Values


Read Values

Test Values


Test Values

Tool

Transform

Get Tool Direction


Get Tool Direction

Get Tool Normal


Get Tool Normal

Get Tool Position


Get Tool Position

Get Tool Preview Position


Get Tool Preview Position

Render

Set Tool Overlay Bounds


Set Tool Overlay Bounds

Update Tool Mesh


Note: Material will not be updated if the mesh did not change

Nodes

Can Edit


Can Edit

Get Bounds to Cache


Will also debug them

Get Delta Time


Delta time accounting for the skipped frame waiting for updates

Get Last Frame Tick Data


Get Last Frame Tick Data

Get Mouse Movement Size


Get Mouse Movement Size

Get Tick Data


Get Tick Data

Get Value After Axis Input


Get Value After Axis Input

Last Frame Can Edit


Last Frame Can Edit

Voxel Tool Library

Update Sphere Overlay Material


Update Sphere Overlay Material

General

Create World


Create World

Destroy World


Destroy World

Get Generator Cache


The generator cache allows to reuse generator objects

This is required for DataItemActors to allow for smaller update when moving them

Get Generator Init


Used to init generators

Is Created


Is this world created?

Is Loaded


Has the VoxelRenderer finished loading?

Set Generator Class


Set Generator Class

Set Generator Object


Set Generator Object

Collision

Set Collision Response to Channel


Can be called at runtime

World Size

Set Render Octree Chunk Size


Set Render Octree Chunk Size

Set Render Octree Depth


Set Render Octree Depth

Set World Size


Set World Size

Nodes

Is Voxel Plugin Pro


Is Voxel Plugin Pro

Number Of Cores


Returns the number of cores the CPU has. Ignores hyperthreading unless -usehyperthreading is passed as a command line argument.

Raise Error


Raise Error

Raise Info


Raise Info

Raise Warning


Raise Warning

Make Generator Instance


Creates (or reuse if possible) a new generator instance

Among other things, this is required for DataItemActors to reuse generators, which allows for smaller update when moving them

Make Transformable Generator Instance


Creates (or reuse if possible) a new generator instance

Among other things, this is required for DataItemActors to reuse generators, which allows for smaller update when moving them

Apply Voxel Size


Apply Voxel Size

Set Scene


Set Scene

Apply Voxel Physics


Apply voxel physics in a section of the voxel world by removing floating parts

Make Voxel Line Trace Parameters


Make voxel line trace parameters
